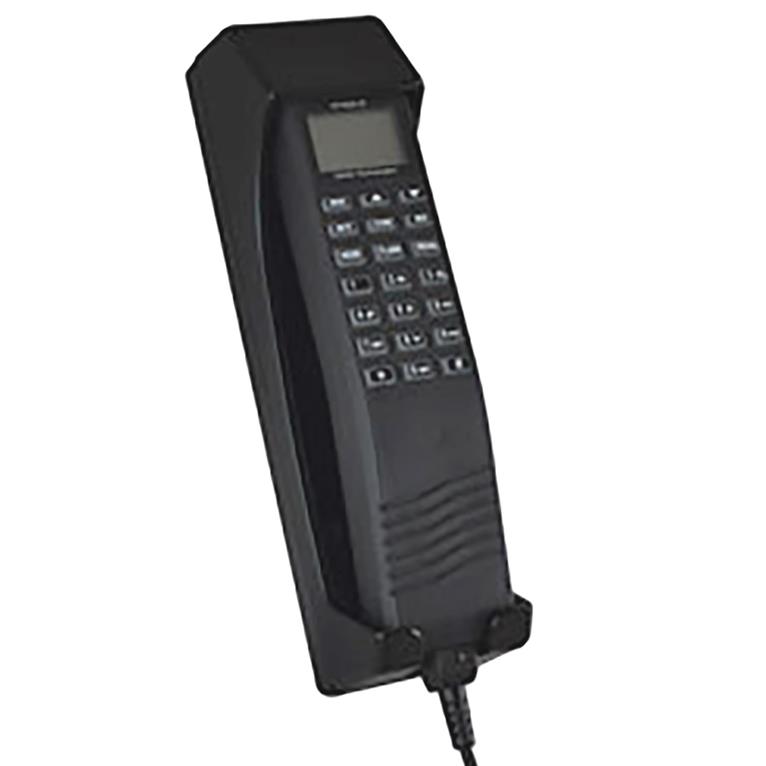

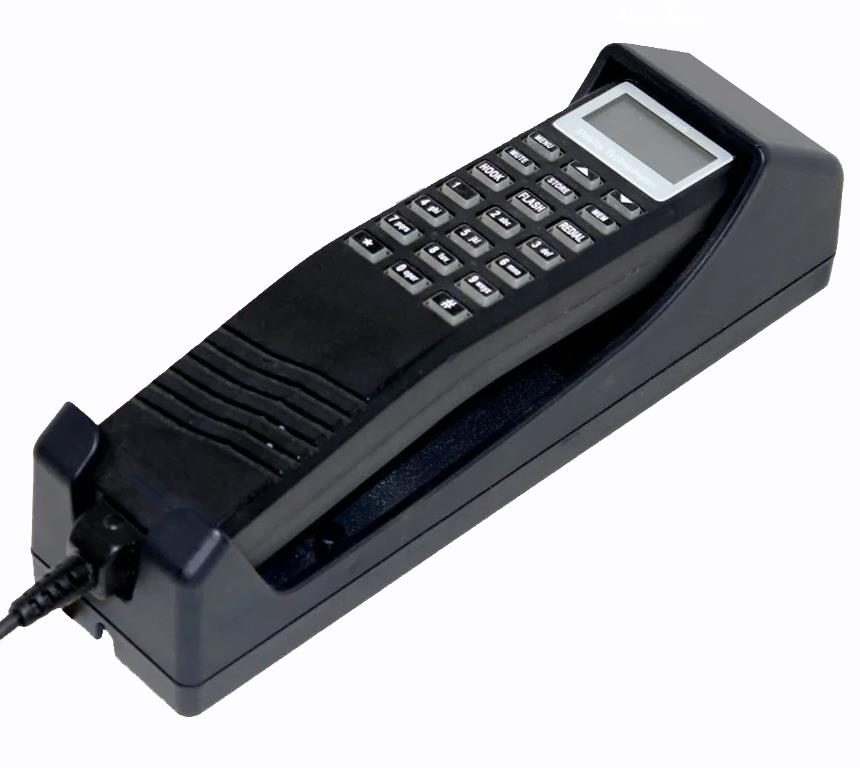

The Deklin Technologies DT100 analog telephone handset is a sleek comfortable lightweight design fits easily into any cabin decor. It has advanced features such as a noise reduction microphone and adjustable volume control with user friendly operation. Additional features include last number redial, 10 memory speed dial numbers, flash, hold and mute. The keypad lights up when the phone is taken Off Hook to aid the user in dialing. The locking base requires minimal space while providing maximum mounting flexibility and security.
The Tip and Ring telephone circuit connects to most general aviation transceivers. The lit keypad is located on the back of the handset for easy access. The number and junction keys are clearly marked and easy to use.
This DT100 analog telephone features a six-foot coil cable and a Collins logo.
Specifications
Case Material:
Flame Retardant ABS, Polyac® PA-766
Flame Retardant Qualification:
FAR25.853 Part1, (a),(1),(v)
Dimension:
8.705 x 2.355 x 2.04 in (221 x 59 x 52 mm)
Operating Temperature:
-5°F to 105°F (-20°C to 40°C)
Survival Temperature
-40°F to 158°F (-40°C to 70°C)
Humidity:
95%
Altitude:
35,000 ft (max.)
Weight:
0.6 lb (0.272 kg) Handset & Cradle
Connectors:
RJ11/6 Jack OR SD9M10JV50 9-pin D-Sub
Input Voltage:
22 VDC — 33 VDC (27 VDC nominal)
Current:
0.5A (nominal)
Fuse Rating:
1A
Telephone Line Inputs:
1
Telephone I/F:
2-wire Analog POTS
Distortion:
<5%
Ringing Voltage:
90 VAC ±15V (no load)
On Hook Voltage:
-48 VDC (with respect to airframe)
Off Hook Voltage:
-5 VDC (with respect to airframe)
