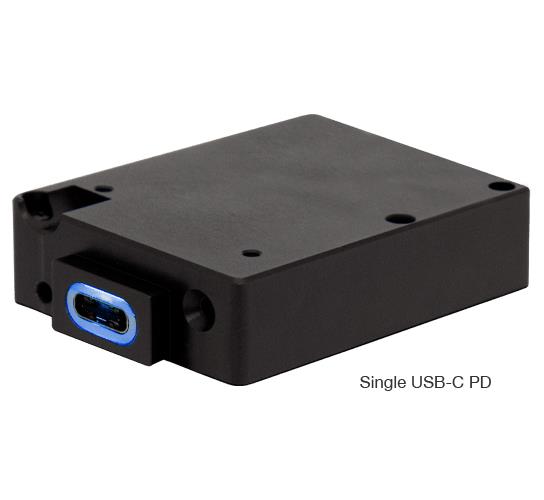

MAX Power USB Charger
- Simultaneously provides 3.0 amps per charging port
- 22 – 32 VDC input voltage
- Delivers up to 60 watts of power per PD port
- Single, USB-C PD connector
- Compatible with USB-C PD and traditional USB-C devices
- Short circuit, power surges, overload and over temperature protection
- In-seat, cabin, cockpit and galley applications
- Designed and built in Wichita, Kansas, USA
- Limited lifetime warranty
Input Voltage: 22 – 32 VDC
Input Power: 66 W per port (maximum)
Output Voltage: USB-C PD; 5 – 20 VDC per port (variable)
Output Power: USB-C PD; 60 W per port (maximum)
Output Current: 3.0 amps per port
USB Connector: Single USB-C PD configuration
Weight: 1.0 ounces (28 grams)
Dimensions: 1.5” W x 0.52” H x 2.0” D
Mating Connector Kit: MCI P/N 9017960 (included)
Mounting: Front or rear; faceplates and adapter plates (optional)
Installation: In-seat, cabin, cockpit and galley
Faceplates
| Part Number | Mounting | USB | Shape | Size |
| 9019351-1 | Rear | Single | Rectangular | 1.35”W x 1.00"H |
| 9019384-3 | Rear | Single | Circular | 1.35” Diameter |
Dust Covers
| Part Number | Color | USB | Connector | Length |
| 9019313-1 | Black | Single | USB-A | 2.56” |
| 9019313-2 | Gray | Single | USB-A | 2.56" |
Case: Anodized aluminum, black
Certification
FAA TSO C71
EASA ETSO C71
RTCA DO-160G
Unit of Measure: EACH
Supplier/Manufacturer SKU: 6430360-7
Mil Spec, TSO, Certification: FAA TSO C71, EASA ETSO C71, RTCA DO-160G
