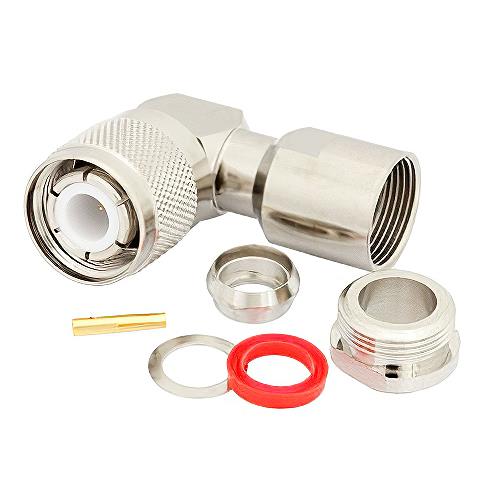

PE4230 HN male right angle coaxial connector has an interface type of RG213, RG8, RG393, RG225, RG214, RG393, RG9 and a 50 Ohm impedance. Pasternack HN male connector uses shield/contact clamp/solder as an attachment method. Our male HN right angle coaxial connector provides a minimum frequency of DC and a maximum frequency of 3 GHz.
The Pasternack right angle HN male coaxial connector has a PTFE dielectric type and a VSWR of 1.3. The Pasternack HN coaxial connector has a brass body with nickel plating. Our PE4230 HNright angle connector uses brass contact. This HN male right angle coaxial RF connector is RoHS and REACH compliant.
- HN male connector
- MIL-STD-348A
- 50Ω impedance
- 3 GHz Max. operating frequency
- VSWR 1.3:1
- Gold-plated brass contact
Download Data Sheet
Unit of Measure: EACH
Supplier/Manufacturer SKU: PE4230
Mil Spec, TSO, Certification: MIL-STD-348A
HS Code: 8536694010
HAZMAT:
UN#:
