☠ HAZMAT: Additional shipping precautions are necessary for this item.

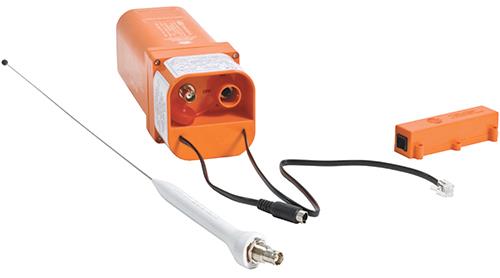

The E-04R ELT Retrofit Kit (EDMO# E-04R) is a direct replacement for the model E-01 ELT's and transmits on 406 as well as 121.5 MHz. For increased accuracy it can also accept NEMA 0183 GPS position data from Garmin and Bendix/King GPS. The E-04 external antenna will utilize a current antenna mounting and wiring installation.
Features
Kit Includes:
- 121.5 MHz / 406 MHz ELT (E-04)
- Remote Horizontal placard (E-04.12.2)
- Remote vertical placard (E-04.12.2)
- Whip antenna (E-04.8)
- Electrostatic discharger (E-04.10.1.12)
- Audio alert (E-04.7)
- Female 4 pin DIN plug (E-04.10.6)
- Audio alert cable (E-04.10.3)
- Switch cover (E-04.11.1)
- Installation/Operation/Manual (E-04M)
Features:
- Accepts GPS position input data from Bendix/King, Garmin, Nema 0183 GPS.
- New antenna is swept back 20 degrees, and features a molded plastic base.
- 5-watts @ 406 MHz for 24 hours, and 100Mw @ 121.5MHz for 48 hours.
- New simple plug in audible alert indicator.
- New lithium battery pack offers a 5 year battery life, and makes it substantially lighter.
- Can use Ameri-King remote panel indicator.
Specifications
Weight:
ELT & battery pack: 1.6 lb
ELT Tray & straps: 0.2 lb
Remote control: 1.1 oz
Audio alert indicator: 1.5 oz
Antenna: 2.1 oz
Dimensions:
7.75 x 2.85 x 2.85 in
Frequency:
121.5 MHz & 406.037 MHz
Power at terminal (50Ω load):
121.5 MHz – 20.7 dBm 50 hr @ -20°C
406.037 MHz – 37.3 dBm 24.5 hr @ -20°C
Operating Temperature:
-20°C to 55°C
Storage Temperature:
-55°C to 85°C
Crash Activation:
4.5 FpS ±0.5 FpS
Peak EIRP with E-04.8 whip antenna & E-04.10.4 coax cable:
121.5 MHz – +23 dBm 200 mW
406.037 MHz – +39.79 dBm 13.7 W
Battery Life:
5 years
Type:
TSO C-126 AF
