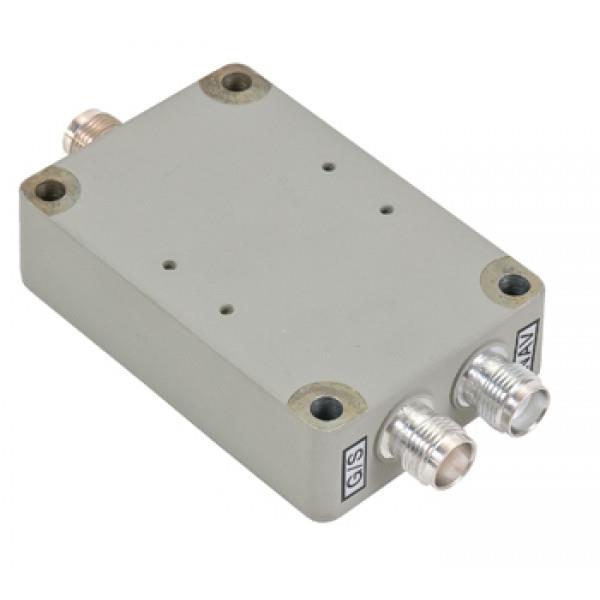

The CI 1120 VOR/LOC/GS signal diplexer is a two-through-hole-mount style diplexer with TNC ports that converts a single VOR/LOC/GS antenna signal into one VOR/LOC and one GS signal output. It is designed for avionics units that require a split NAV signal and is suitable for internal aircraft mounting.
Features
- For internal aircraft mounting
- Frequencies covered: 108–120 MHz & 325–340 MHz
- TNC female connector
Specifications
Weight:
0.50 lb
Height:
0.85 in
Frequency:
108–120 MHz & 325–340 MHz
VSWR:
1.5:1 Max
Isolation:
40 dB Min between frequencies
Insertion Loss:
0.5 dB Max, 0.3 dB Typical
Impedance:
50 Ω
Material:
Die Cast Aluminum
Finish:
Flat Grey Epoxy Paint
Connectors:
TNC Female
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 1120
Mil Spec, TSO, Certification:
HS Code: 8529.10.4000
HAZMAT:
UN#:
