8 Modes
- Local Time
- UTC/Zulu Time
- Flight Timer
- Countdown Timer
- Stopwatch
- Volts
- OAT
- Secondary Air Temperature

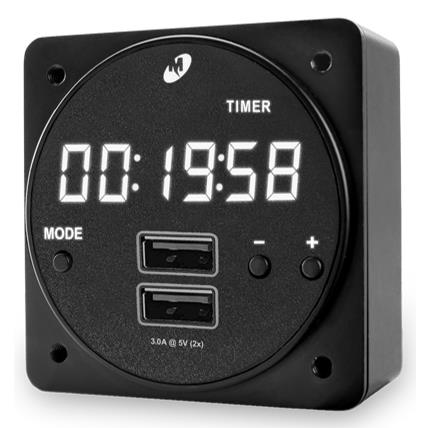

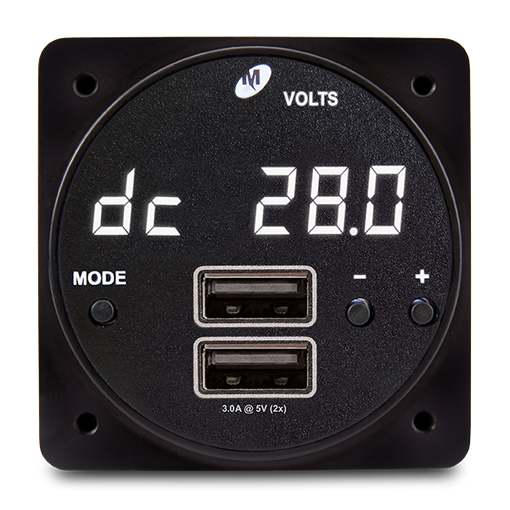

Replace aging analog clocks with the multifunction CHRONOS CH93HP. This multi-function, 2-inch digital clock features 8 modes: Local Time, UTC/Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, Outside Air Temperature (OAT) and Secondary Air Temperature. Dual USB-A ports deliver up to 15 watts of power per port and allow you to charge your devices quickly and conveniently. CHRONOS is TSO certified, and an internal field-replaceable battery maintains Time and Flight Timer Memory, without aircraft power.
Technical Description
Benefits
- Six-digit, seven-segment LED clock
- Modes: Local Time, UTC / Zulu Time, Flight Timer, Countdown Timer, Stopwatch
- Clock settings include 12- or 24-hour mode and seconds On or Off
- Manual and automatic lighting control with programmable dimming curves
- Internal, field-replaceable battery maintains time and Flight Timer memory without aircraft power
- Compact, 2-inch size fits standard panel cutout
- 15 watts / 3 amps USB power per port
- Compatible with Apple, Android and other USB devices
- Protects itself and the charging device from short circuit, power surges and over-current potential
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
Specifications
Power Input
10–32 VDC; 36 W maximum
2.6 A @ 14 VDC; 1.3 A @ 28 VDC
USB Power Output
5.0 ± 0.25 VDC; 15 W, 3.0 A per port
Clock Accuracy
±0.5 seconds in 24 hours, ± 3 minutes per year
Weight
5.0 oz (0.3 lbs)
Modes
Local Time, UTC / Zulu Time, Flight Timer, Countdown Timer, Stopwatch
Operating Temp
-40ºC to 70ºC (-40ºF to 158ºF)
Altitude
55,000 feet
Mounting
Rear-panel mounted, (4) #6 screws
Dimensions
2.39 x 2.39 x 1.15 inches
Connector Kit
MCIA P/N 9018178
USB Interface
Dual USB-A
Case
Anodized aluminum, black
Certification
FAA TSO certified to C71
EASA ETSO certified to C71
RTCA DO-160G qualified
