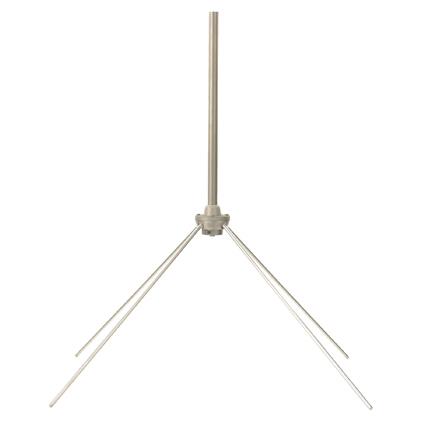

The AV-1 is a base station antenna for communications with ground vehicles or aircraft. It has heavy-duty construction with 3/8-inch diameter aluminum radials, a 1-inch diameter aluminum tube radiator, and is iridite-treated for durability. It mounts easily to a 1-inch diameter pipe or a 1-1/4 inch O.D. tube with locking set screws. A built-in, gap-type lighting arrestor is an important design feature. The antenna requires no additional tuning and is designed to withstand wind speeds of up 100 mph.
Features
- Designed for base station communication
- 118–137 MHz frequencies
- Vertical polarization
- Omnidirectional pattern
- 50 Ω impedance
- SO-239 connector
- Backed by the RAMI Limited Lifetime Warranty
Specifications
Weight:
2.75 lb
Height:
37 in
Frequency:
118–137 MHz
Impedance:
50 Ω
VSWR:
2.0:1, maximum
Polarization:
Vertical
Pattern:
Omni-Directional
Connector:
SO-239
RF power capacity:
500W
Unit of Measure: EACH
Supplier/Manufacturer SKU: AV-1
Mil Spec, TSO, Certification:
HS Code: 8529.10.4000
