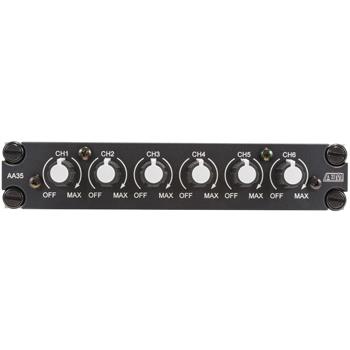

The AA35-001 Audio Mixer Panel is a six channel summing amplifier with independent level control for each input. It can be used as an expansion panel for existing controllers.
- Dzus mount audio mixer/ summing amplifier panel
- Provides signal combinations of up to six in/six out or six in/one composite out
- 2.5 Vrms or 7 Vrms input level
- Output 7.7 Vrms or 100 mW/600 ohm max
- Panel Lighting 28 Vdc (normal)
Unit of Measure: EACH
Supplier/Manufacturer SKU: AA35-001
Mil Spec, TSO, Certification:
HS Code:
HAZMAT:
UN#:
