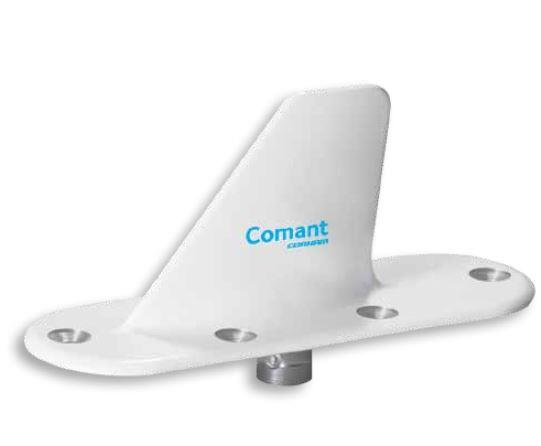

The CI 110-60-30 DME transponder blade antenna (EDMO# CI-1106030) is an all metal, low profile antenna designed for business jet and commercial high speed aircraft. With a popular six hole mount and connector with open path to ground, this antenna is ideally suited for those aircraft equipped with standard transponders and Mode S transponders. Tough, one-piece construction provides 175 lbs. side load capability, guarding against breakage from ground equipment. Moisture failure is prevented with completely sealed construction.
Features
- 960–1220 MHz frequencies
- Vertical polarization
- Omnidirectional radiation pattern
- All metal one-piece construction
- 6-hole mounting
- Completely sealed
Specifications
Weight:
0.25 lb
Height:
2.25 in
Frequency:
960–1220 MHz
VSWR:
1.5:1 maximum
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance (RF):
50 Ω
Resistance DC:
Open Circuit
Power (RF):
3.0 KW Peak / 100 watt average
Temperature:
-55ºC to +85ºC
Altitude:
55,000 ft
Certifications:
FAA TSO C66c, C74c, C112 (Class 1A), DO-160D
