Power Your Starlink® Mini with Compatible 100-Watt USB Chargers
TA360 MAX Power USB Chargers are the most powerful in aviation, delivering up to 100 watts per port to your Starlink® Mini system, EFB, laptop, tablet or smartphone. MAX Chargers feature cutting-edge Power Delivery (PD) Technology and are easy to install in your cabin, cockpit or galley. They are a drop-in replacement for True Blue Power TA102 and TA202 Series charging ports.
True Blue Power USB chargers are not compatible with Starlink® manufactured USB-C to barrel jack cables. A third-party validated cable is required. Shop validated cables

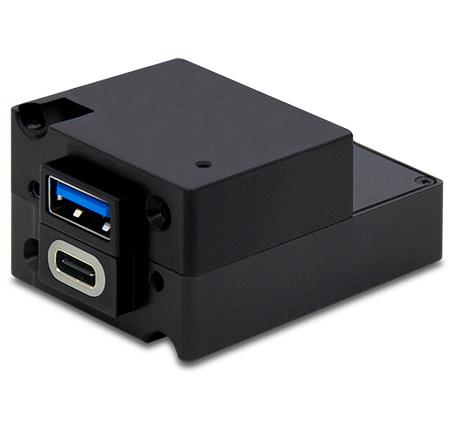

MAX Power USB Charger
Upgrade your aircraft with the fastest, most efficient USB charging. New MAX Power TA360 charging ports feature the latest USB Power Delivery (PD) Technology to deliver up to 100 watts of power per port — 7X more power than traditional chargers.
- Simultaneously provides 3.0 amps (USB-A) and 5.0 amps (USB-C PD)
- 22 – 32 VDC input voltage
- Delivers up to 100 watts of power per PD port
- Dual, USB-C PD / USB-A connectors
- Compatible with USB-C PD, traditional USB-C and USB-A devices
- Charge two devices simultaneously at maximum power
- Short circuit, power surges, overload and over temperature protection
- In-seat, cabin, cockpit and galley applications
- Designed and built in Wichita, Kansas, USA
- Limited lifetime warranty
Input Voltage: 22 – 32 VDC
Input Power: USB-C PD; 100 W per port (maximum)
USB-A; 18 W per port (maximum)
Output Voltage: USB-C PD; 5 – 20 VDC per port (variable); USB-A; 5 VDC ± 0.25 per port
Output Power: USB-C PD; 100 W per port (maximum); USB-A; 15 W per port
Output Current: USB-C PD: 5.0 amps per port; USB-A: 3.0 amps per port
USB Connector: USB-C PD and USB-A; single and dual configurations
Weight: 1.8 ounces (51 grams)
Dimensions: 1.5” W x 1.03” H x 2.0” D
Mating Connector Kit: MCI P/N 9017960 (included)
Mounting: Front or rear; faceplates and adapter plates (optional)
Installation: In-seat, cabin, cockpit and galley
Faceplates
| Part Number | Mounting | USB | Shape | Size |
| 9017958 | Rear | Dual | Square | 1.35”W x 1.35”H |
| 9019384-4 | Rear | Dual | Circular | 1.50” Diameter |
Adapter Plates
| Part Number | Mounting | USB | Shape | Cutout Size |
| 9017947 | Rear | Dual | Instrument | 2.25" Diameter |
Dust Covers
| Part Number | Color | USB | Connector | Length |
| 9019313-1 | Black | Single | USB-A | 2.56” |
| 9019313-2 | Gray | Single | USB-A | 2.56" |
Case: Anodized aluminum, black
Certification
FAA TSO C71
EASA ETSO C71
RTCA DO-160G
