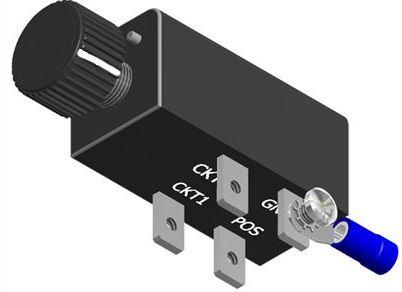

MicroPulse UNIT
P/N 9100-001-M

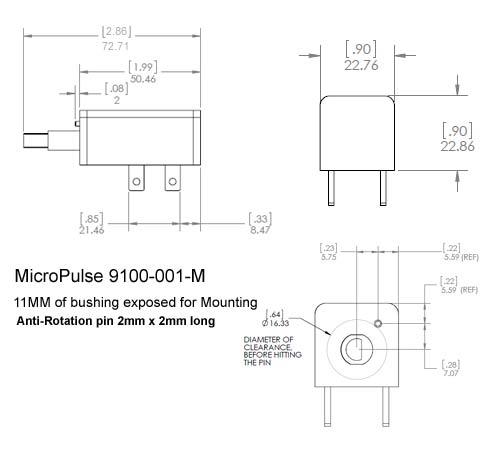

12 to 35 VDC, 0-8 A per channel, Control over 224 Watts per channel in a .9" Inch square by 1.9" Package.
Complete compact, light weight, powerful, solid state Landing light controller.
The MicroPulse has all the functions you should need. If you have a special application, be sure to let us know.
Features:
- DUAL CHANNEL control of Lighting - P/N 9100-001-M
- Smallest all self contained Wig Wag and Lighting control
- Wig Wag Control, multiple rates, combinations of lighting
- No outboard heat sinks, boxes, rheostats, or other packages
- RTCA/DO-160G SEC 21: RFE Qualified
- Incandescent lights, LED landing lights, HID lights
- Configure for Wig Wag or Wing and taxi light pulsing, single
light pulsing etc. - Increased Visibility and Safety for your passengers and yourself
- Emergency Vehicles
- Hundreds of DC Lighting Control applications
- Assembled Totally in the USA.
Specifications:
-
Voltage Range: 12VDC to 35VDC
-
Max Current: 8 A per channel
-
Dual channel device - "9100-001-M"
- MicroPulse Function Modes: Switch Positions
- OFF Both Circuits Off
- L Left on only (CKT1)
- R Right on only (CKT2)
- L&R Both circuits On
- B44 Both Flash 44 PPM
- A44 Alternate 44 PPM (STD)
- A88 Alternate 88 PPM
- A120 Alternate 120 PPM
-
Capacity:
-
96 Watts @12 VDC each channel
-
224 Watts @28 VDC each channel
-
-
Install with Standard Supplied solderless ring lug terminal
-
Storage Temperature: -40 degrees C to +100 degrees C
-
Maximum Internal Temperature: @15A +15 degrees C
-
Enclosure Material: Avantra 8731 polystyrene Meets UL 94
-
Flame Rating: Meets UL94V-0 (@ 0.062"/1.5 mm min.) rating
-
Conforms to RTCA/DO-160G SEC 21: RFE (EMI)
-
One Year limited warranty
-
Weight: 1.49 oz including knob
-
What's in the box? MicroPulse unit, installation instructions, color coded terminals, reference panel label, and knob.
